Izigayi ezi-4 Zokugoqa Ezimngcingo Eziphakeme Ezihlehliswayo

Izigayo ze-GRM-S 4 eziphakeme eziwumngcingo ezigoqayo ezibuyiseleka emuva zisuka efekthri ye-GRM Rolling Mill ziklanyelweukugoqa okunembayo kwemichilo emincane ngaphansi kobubanzi obungu-140 mm. Ifakwe isakhiwo esiphendukayo esibuyiselekayo, i-PLC, isikrini esithintwayo kanye nesistimu yokulawula i-servo, isigayo sinika amandla okugoqa amaphasi amaningi wezinto zomcu we-slit ngokunemba okuhle kakhulu kogqinsi, ukugqama kwe-strip kanye nekhwalithi yomphetho. Kuyisixazululo esifanelekile sezinhlelo zokusebenza zenani eliphezulu ezidinga kokubili ukunemba nokuguquguquka kokukhiqiza.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izigayo zokuhlehlisa isitendi esisodwa se-GRM zilungele ukugoqa ngokunemba kwezinto ezihlukahlukene okuhlanganisa insimbi ye-silicon, insimbi engagqwali, ama-alloys e-aluminium kanye nama-titanium alloys. Imodi yokugoqa ehlehliswayo ivumela ukuhlela okuguquguqukayo kokudlula ngokuya ngezakhiwo zezinto ezibonakalayo nogqinsi oluqondiwe.

Ifaka ukwakheka okuhlangene kanye nesilinganiso esiphezulu sokusebenza kwezindleko, isigayo sifaneleka ngokukhethekile ukukhiqizwa kwenqwaba encane kuya kokumaphakathi, izinhlelo zokusebenza ze-R&D kanye nokucutshungulwa kwemininingwane eminingi.

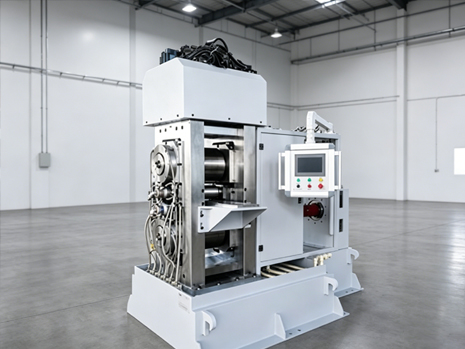

4-high narrow strip reversing mill overview

4-high reversing mill main unit with work and backup rolls

Narrow strip reversing mill for stainless steel rolling

Silicon steel narrow strip rolling on 4-high reversing mill

Aluminum alloy narrow strip reversing rolling

Izinto Ezisebenzayo

Imichilo ye-alloy yesiliva nesiliva

Izinhlamvu ze-aluminium alloy

Imichilo ye-clad esekelwe ku-aluminium

Imichilo yensimbi engagqwali

Imichilo yensimbi ye-silicon

I-Titanium alloy kanye nemichilo ye-titanium clad

Ukucushwa

Inkundla eyodwa eyamukelayo kuzo zombili izinhlangothi zokungena nokuphuma

Iyunithi enkulu yokugaya ehlehlayo engu-4 ephezulu

Amaroli aphezulu naphansi ashayelwa ngokuzimela ukuze agingqike asynchronous

I-PLC + HMI + Uhlelo oludidiyelwe lokulawula lwe-Servo

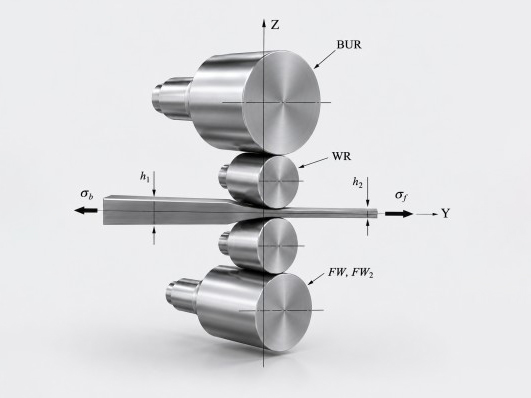

Silver alloy and titanium strip rolling on narrow strip mill

Idatha Yezobuchwepheshe

Uhlobo Lwesitendi	4-High Isitendi Single Reverses Mill
Okokufaka Ukujiya	0.5 - 10 mm
Ubukhulu Bokukhiphayo	0.2 – 0.8 mm
Ububanzi be-Strip	100 - 140 mm
Ukujiya Ukubekezelelana	±0.015 mm
I-Bearing Lubrication	Ukugcotshwa kukawoyela okuzenzakalelayo okuyisekhethi evaliwe
I-Backup Roll Diameter	Φ300 × 200 mm
Ububanzi be-Work Roll	Φ120 × 200 mm
Isivinini sokuklama	0 – 0.4 m/s
I-Rolling Force	≥ 80 T

Izinzuzo

Idizayini Ehlehlayo Yokugingqika

Ukulawula okuguquguqukayo kokudlula kwezinto ezihlukene kanye nobubanzi obuwugqinsi.

High Precision Control

Izigayo ezi-4 ezigoqayo eziphakeme eziwumngcingo ezihlehliswayo zifakwe i-servo drive ephelele kanye nesistimu yokulawula ye-PLC, efinyelela ukunemba kogqinsi kufika ku-±0.015 mm.

I-I-Compact Mill Stand Design

Isakhiwo sesitendi esisodwa esinonyawo oluncane, silungele ukukhiqizwa kweqoqo elincane nelimaphakathi elinokucaciswa kwemikhiqizo eminingi.

Izinketho

Isistimu yokushisisa ye-electromagnetic roll (150-250°C)

Inika amandla ukushintsha phakathi kwamamodi okuginqika abandayo nawokufudumala.

4-phezulu kuya 2-high ukuguqulwa isakhiwo

Igcinelwe ukunwetshwa kwenqubo yesikhathi esizayo nezinhlelo zokusebenza ezishisayo.

FAQ

Q1: Yibuphi ububanzi bomugqa womugqa omkhulu?

I-GRM: Ubukhulu bobubanzi bomugqa bungu-140 mm, budizayinelwe ukunemba kwezinhlelo zokusebenza zokugoqa eziwumngcingo.

Q2: Ingabe umshini wokugaya ungenza insimbi engagqwali ne-silicon steel?

GRM: Yebo. Izigayo zethu ezi-4 ezi-4 eziphakeme ezigoqayo ezihlehliswayo zifaneleka ngokukhethekile izinto okunzima ukuzigingqa njengensimbi engagqwali ne-silicon steel.

Q3: Ingabe umshini wokugaya ungasebenza ngemigqa yokudonsa noma yokukhetha?

GRM: Yebo. I-GRM ingahlinzeka ngezixazululo ezididiyelwe ezihlanganisa izintambo zokudonsa, amasistimu okukhetha kanye nemishini yokubamba ikhoyili.

I-GRM igxile ekuxazululeni ukunemba kwemigqa emincane, ehlinzeka ngemishini ngokunemba okuphezulu, ukwethembeka kanye nokusebenza kahle kwezindleko. Ngaphezu kwezigayo ezihlehlayo zesitendi esisodwa, siphinde sinikeze izigayo ezicwebezelayo ezinezitendi eziningi, imigqa egoqayo eqhubekayo kanye nezinhlelo zokucubungula insimbi ezenziwe ngokwezifiso.
Xhumana nathi namuhla ukuze uthole isixazululo esihlanganisiwe sezinto zakho ezibonakalayo kanye nezidingo zokukhiqiza.
