I-Solar PV Ribbon Machine

I-Solar PV Ribbon & MBB Wire Manufacturing Solutions

I-GRM inikeza izixazululo eziphelele zokukhiqizaIribhoni yokuxhuma i-PV, iribhoni yebhasi ye-PV kanye nokukhiqizwa kwezintambo eziyindilinga ze-MBB. Iphothifoliyo yethu yemishini ihlanganisa ukunemba kokugingqika, ukufakwa kwe-anneal, ukuthayela, ukwelashwa kwendawo kanye nezinhlelo zokugenca ezizenzakalelayo, ezisekela ukukhiqizwa kwamakhondatha asebenza kahle kakhulu amamojula esimanje e-photovoltaic.

Idizayinelwe ikhwalithi ezinzile, ukulawulwa okunembile kobukhulu kanye nokusebenza okuthembekile kwesikhathi eside, izixazululo ze-GRM zisiza abakhiqizi ukuhlangabezana nesidingo esikhulayo sobuchwepheshe obusebenza kahle kakhulu bokuxhuma amaseli elanga.

Izixazululo Zezisetshenziswa Eziphelele Zamakhondatha elanga

I-PV Interconnect Ribbon

I-PV Busbar

I-MBB Round Wire

Iribhoni yokuxhumanaidlulisa okwamanje phakathi kwamaseli elanga,iribhoni yebhasiiqoqa futhi ilethe okwamanje ebhokisini lokuhlangana, kuyilaphoIntambo eyindilinga ye-MBBinika amandla ukusebenza kahle kwemojula ngokunciphisa ukulahleka kwe-shading.

Lawa ma-conductor adlala indima ebalulekile ekuphumeni kwamandla, ukwethembeka kanye nokusebenza kwamamojula wesikhathi eside.

Indlela Ama-Solar Conductor Akhiqizwa ngayo

I-GRM inikeza izixazululo eziphelele zokukhiqiza zokukhiqiza ama-solar conductor. Imishini ye-GRM ihlanganisa ukugeleza komsebenzi okuphelele kokukhiqiza kusukela ekugingqikeni okunembayo kanye nokunamathiselwa kuye ekuthinini nasekulungiseni izinto zethusi zokuphonswa kwensimbi kuya kuribhoni we-PV oqediwe kanye nemikhiqizo yocingo ye-MBB.

Inqubo yokukhiqiza edidiyelwe iqinisekisa ukunemba kwe-dimensional, ikhwalithi enamathela ezinzile kanye nokusebenza kahle kokukhiqiza okuphezulu.

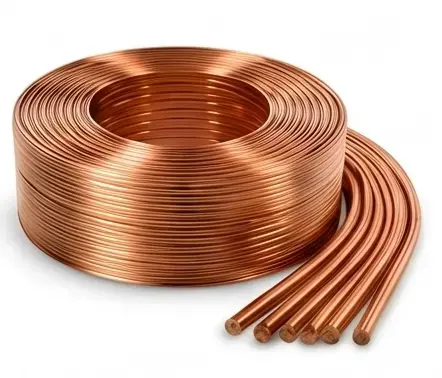

I-Raw Copper Material

Induku yethusi ehlanzekile kakhulu njengempahla eluhlaza

Induku yethusi

Intambo yethusi

→

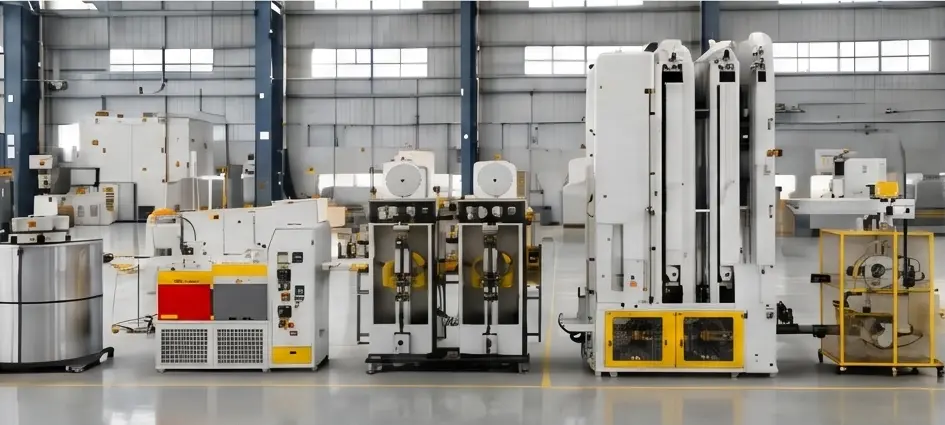

Izisetshenziswa Zokukhiqiza ze-GRM

Qedela umugqa wokukhiqiza wokwakhiwa okunembayo, ukuhlanganisa kanye nokuhlanganisa

Ukuginqika
Isigayo

Anealing
Isithando somlilo

Ubuso
Ukwelashwa

Spooling
Uhlelo

Ezogesi
Lawula

→

Ama-Solar Conductor

Iribhoni ye-PV enembayo ephezulu kanye nentambo eyindilinga ye-MBB

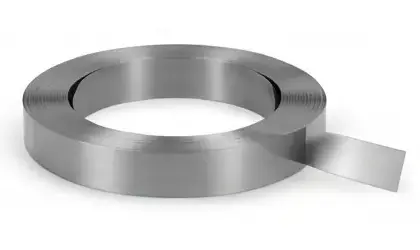

Iribhoni ye-PV

(Iribhoni yokuxhumana / i-Busbar Ribbon)

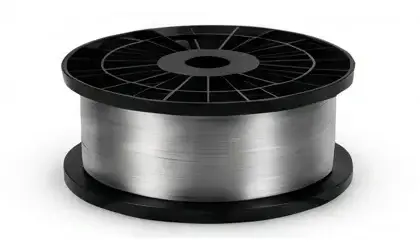

I-MBB Round Wire

(φ0.20-0.25 mm)

→

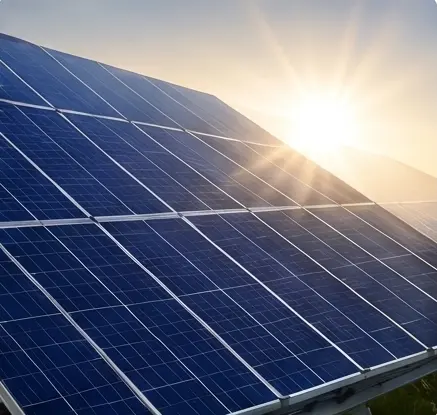

I-Solar Module

Isetshenziswa kumamojula welanga asebenza kahle kakhulu

I-I-TOPCon
Amamojula

HJT
Amamojula

Ukuqhathaniswa komkhiqizo.

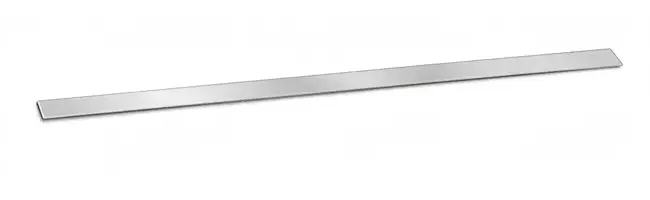

I-PV Interconnect Ribbon

(I-Ribbon edonsayo)

Umsebenzi

Ukuxhumana Kweseli

Ububanzi

0.3 - 1.6 mm

Ubukhulu

0.10 - 0.25 mm

Isicelo

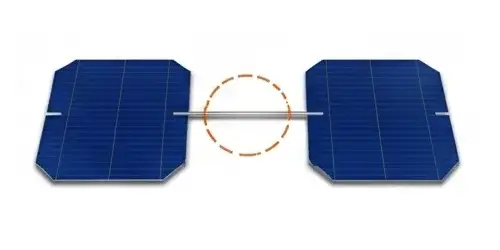

Iseli Stringing

Ixhuma amaseli ancikene kuyunithi yezinhlamvu zemojuli.

Inzuzo Eyinhloko

Uxhumano oluthembekile lweseli kuya kuseli olunokuthengiselana okuphezulu kanye nokusebenza okuhle kakhulu.

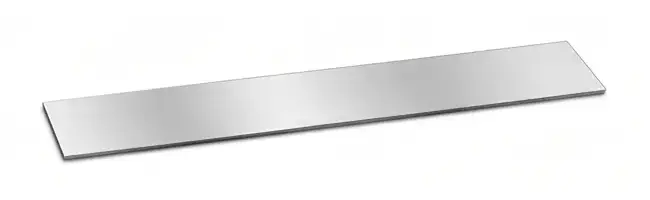

I-PV Busbar Ribbon

(Bus Wire)

Umsebenzi

Iqoqo Lamanje

Ububanzi

3.0 – 8.0 mm

Ubukhulu

0.20 - 0.50 mm

Isicelo

Okukhiphayo kwemojuli

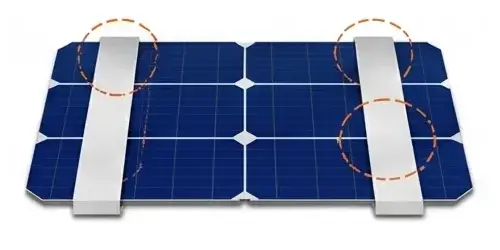

Busbar ribbon current collection diagram

Iqoqa okwamanje kusuka kumaseli axhumene bese idlulisela ebhokisini lokuhlangana.

Inzuzo Eyinhloko

Ukumelana okuphansi kanye nomthamo ophezulu wamanje wokuthwala wokukhipha amandla aphezulu.

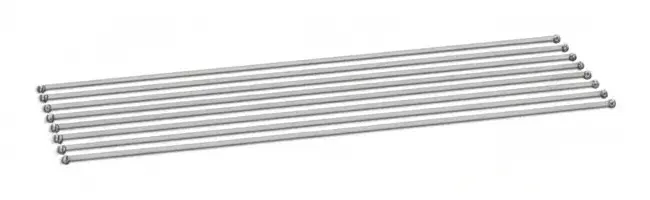

I-I-PV MBB Round Wire

Umsebenzi

Uxhumano lwamabhasi amaningi

Ububanzi

φ0.20 - 0.26 mm

Ubukhulu

–

Isicelo

Amamojula Asebenza Kakhulu

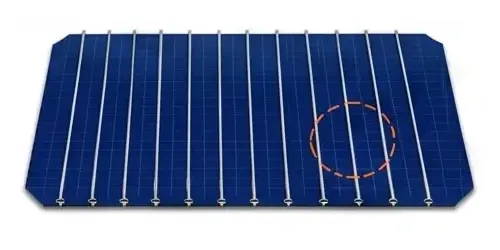

MBB round wire soldering on cell surface

Ithengiswa endaweni yeseli ukuze kuncishiswe ukuthungatha futhi kuthuthukiswe ukusebenza kahle.

Inzuzo Eyinhloko

Ukulahlekelwa kwe-shading okuncishisiwe kanye nokusetshenziswa okungcono kokukhanya kokusebenza kahle kwemojuli ephezulu.

Isici	I-PV Interconnect Ribbon (Iribhoni ye-Tabbing)	I-I-PV Busbar Ribbon (Bus Wire)	I-I-PV MBB Round Wire
Umsebenzi	Ukuxhumana Kweseli	Iqoqo Lamanje	Uxhumano lwamabhasi amaningi
Ububanzi	0.3-1.6mm	3.0-8.0mm	-
Ukuqina	0.1 -0.25mm	0.20 -0.50mm	-
Ububanzi	-	-	φ0.20-0.26mm
Isicelo	Iseli Stringing	Ukukhipha Imojula	Amamojula Asebenza Kakhulu

Iribhoni ye-PV kanye ne-MBB eyindilinga yocingo isetshenziswa kabanzi ekukhiqizeni amamojula we-photovoltaic asebenza kahle kakhulu. Ngokwamukelwa okusheshayo kwe-TOPCon, i-HJT kanye nobuchwepheshe beselula be-BC, abakhiqizi badinga ama-conductor anembayo ephakeme, ukuthengiselana okungcono nokusebenza kagesi okuthuthukisiwe.

Imishini ye-GRM isekela ukukhiqizwa kwamakhondatha elanga asetshenziswa ku:

Amamojula we-I-TOPCon

Amamojula we-HJT

BC Amamojula

Amamojula we-Crystalline Silicon ajwayelekile

Utility-Scale Solar Power Systems

Amaphrojekthi Amandla Elanga asatshalaliswe

Kuthenjwa Abaholi Bemboni

Imishini ye-GRM ihlinzekwe kubakhiqizi abahamba phambili be-PV ne-solar conductor e-China nasezimakethe zaphesheya kwezilwandle. Phakathi neminyaka yokubambisana nozakwethu bemboni, i-GRM iqongelele ulwazi oluningi ekugingqeni ikhondatha, ukuhlanganisa, ukuthayela kanye nokwenza kahle inqubo.

Izixazululo zethu zomshini weribhoni we-PV welanga zisekela abakhiqizi abakhiqiza ama-conductor amamojula welanga asebenza kahle kakhulu futhi basize amakhasimende athuthukise ukukhiqiza, ukungaguquguquki komkhiqizo kanye nokuthembeka kokusebenza kwesikhathi eside.

Qala Iphrojekthi Yakho Yokukhiqiza I-Solar PV

Kungakhathaliseki ukuthi ungena embonini ye-PV conductor noma wandisa umthamo wakho wokukhiqiza, i-GRM inikeza izixazululo eziphelele zemishini, ubuchwepheshe bezinqubo kanye nokusekelwa kwezobuchwepheshe kwesikhathi eside.

Xhumana ne-GRM ukuze utholea eyenziwe ngokwezifisoIribhoni ye-PV noma isixazululo sokukhiqiza izintambo ze-MBB.

Kungani Khetha i-GRM?

Igxile ekuletheni okokusebenza okuthuthukile nezisombululo ezinokwethenjelwa zokwenziwa kweribhoni le-PV kanye nentambo ye-MBB.

20+

Iminyaka

Precision Rolling Experience

Ubungcweti obuningi bokugoqeka okunembayo, ukunamathela kanye nemishini yokukhiqiza i-conductor.

10+

Amalungelo obunikazi

Ubuchwepheshe obunelungelo lobunikazi

Ubuchwepheshe obuningi obunelungelo lobunikazi bokugingqika okunembayo, ukulawula ukushuba kanye nezinqubo zokwelashwa kwendawo.

100+

Kufakiwe Lines

Izinkomba Zemboni

Ithenjwa abakhiqizi abahamba phambili be-PV ne-solar conductor emhlabeni jikelele.

24/7

Ukusekela kwezobuchwepheshe

Isevisi ye-Lifecycle

Ukwesekwa okuphelele kusukela ekufakweni nasekusebenziseni kuya ekuthuthukisweni nasekuthuthukisweni.

imibuzo ejwayelekile ukubuzwa

1. Yini iribhoni ye-PV?

Iribhoni ye-PV iyi-conductor yethusi eyisicaba ehlanganiswe ne-solder futhi isetshenziselwa ukuxhuma amaseli elanga ngaphakathi kwamamojula we-photovoltaic.

2. Uyini umehluko phakathi kweribhoni yokuxhuma neribhoni yebhasi?

Iribhoni ye-Interconnect ixhuma amaseli elanga, kuyilapho iribhoni yebhasi iqoqa futhi idlulisele ugesi ebhokisini lokuhlangana.

3.Iyini i-MBB ucingo oluyindilinga?

Intambo eyindilinga ye-MBB isetshenziswa kumamojula welanga we-multi-busbar ukunciphisa ukulahleka kwe-shading nokuthuthukisa ukusebenza kahle kwemojula.

4.Yini into edingekayo ukuze kwenziwe iribhoni ye-PV?

Ulayini wokukhiqiza weribhoni we-PV ophelele ngokuvamile uhlanganisa ukugoqa, ukudonsa, ukuthayela, ukulawula ukungezwani kanye namasistimu okugaya.

5.Ingabe umugqa owodwa wokukhiqiza ukhiqiza amasayizi amaribhoni ahlukene?

Yebo. Amasistimu e-GRM angalungiselelwa ukukhiqizwa okuvumelana nezimo kanye nokushintshwa komkhiqizo ngokushesha.

View as

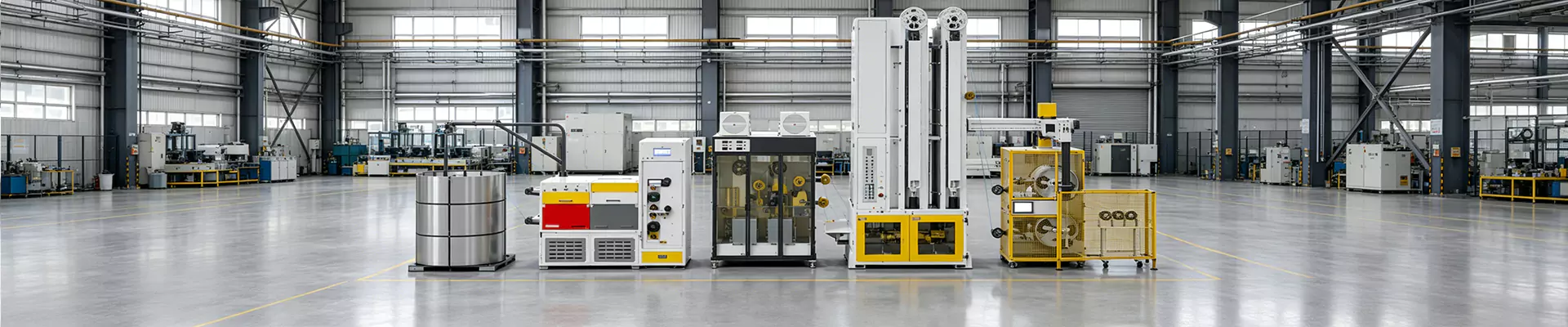

I-PV Busbar Ribbon Production Line

I-GRM PV Busbar Ribbon Production Line iklanyelwe ukuqhubeka icubungula i-TU1 engenawo umoya-mpilo yocingo oluyindilinga lwethusi lube iribhoni eliyisicaba le-conductive elinemba ngothayela. Ulayini ulungele iribhoni yokuxhumana ye-PV, iribhoni yebhasi, kanye nokukhiqizwa kweribhoni yebhasi ekhanyayo.
Ulayini ophelele uhlanganisa umdwebo wezintambo, ukugoqa okunembayo, ukugoqa ngokuqhubekayo, ukwelapha okuguquguqukayo, ukunamathela kwethayela elishisayo, nokuthatha okuzenzakalelayo. Isiza abakhiqizi beribhoni ye-PV balawule ububanzi nokunemba kogqinsi, ikhwalithi yokunamatha kathayela, ubuqotho be-strip, kanye nokungaguquguquki kokugoqa.
Ilayini yokukhiqiza iribhoni yebhasi ye-GRM icishe ibe ngamamitha angama-26 ubude no-3 m ububanzi, nesisindo somugqa esiphelele esingamathani ayi-14. Isivinini sokuklama singafinyelela ku-150 m/min, kuye ngosayizi wentambo yethusi, ubukhulu beribhoni eqediwe, isivinini sokuthayela, kanye nendlela yokuthatha. Ngaphansi kwezimo ezijwayelekile zokukhiqiza, ukukhishwa kwanyanga zonke kungafinyelela cishe amathani angama-60-80.

Funda kabanzi Thumela Uphenyo

Umshini Omusha Wocingo Oyindilinga we-Solar PV

I-GRM New Solar PV Round Wire Machine yakhelwe ukukhiqizwa kwamaribhoni axhumanisayo, into eyinhloko yokuqhuba esetshenziswa kumamojula we-PV.
Ulayini uhlanganisa ukudweba okunembayo, ukuthamba, ukulawula ukushuba, kanye nokujikajika okuhlakaniphile ukuze usekele ijiyomethri yeribhoni ezinzile, ukujiya kwengubo efanayo, kanye nezakhiwo zemishini ezingaguquki. Lawa makhono enqubo asiza abakhiqizi be-PV bathuthukise ikhwalithi yokuxhumana kwamaseli, ukwethembeka kwemojuli, kanye nokuvumelana kokukhiqiza kwesikhathi eside.

Funda kabanzi Thumela Uphenyo

<1 >

Njengomkhiqizi nomhlinzeki onokwethenjelwa I-Solar PV Ribbon Machine e-China, sinefekthri yethu. Uma ufuna ukuthenga imikhiqizo yekhwalithi neqinile, sicela usithinte.
