I-PV Busbar Ribbon Production Line

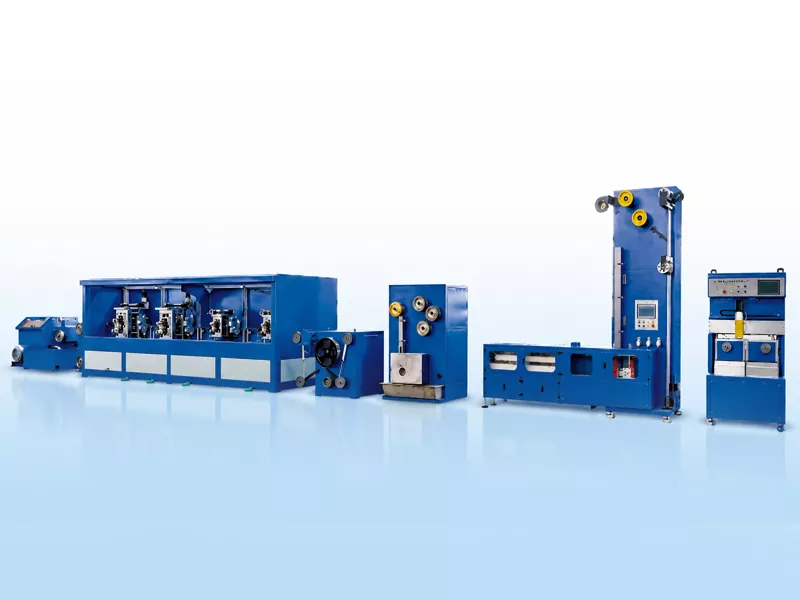

I-GRM PV Busbar Ribbon Production Line iklanyelwe ukuqhubeka icubungula i-TU1 engenawo umoya-mpilo yocingo oluyindilinga lwethusi lube iribhoni eliyisicaba le-conductive elinemba ngothayela. Ulayini ulungele iribhoni yokuxhumana ye-PV, iribhoni yebhasi, kanye nokukhiqizwa kweribhoni yebhasi ekhanyayo.
Ulayini ophelele uhlanganisa umdwebo wezintambo, ukugoqa okunembayo, ukugoqa ngokuqhubekayo, ukwelapha okuguquguqukayo, ukunamathela kwethayela elishisayo, nokuthatha okuzenzakalelayo. Isiza abakhiqizi beribhoni ye-PV balawule ububanzi nokunemba kogqinsi, ikhwalithi yokunamatha kathayela, ubuqotho be-strip, kanye nokungaguquguquki kokugoqa.
Ilayini yokukhiqiza iribhoni yebhasi ye-GRM icishe ibe ngamamitha angama-26 ubude no-3 m ububanzi, nesisindo somugqa esiphelele esingamathani ayi-14. Isivinini sokuklama singafinyelela ku-150 m/min, kuye ngosayizi wentambo yethusi, ubukhulu beribhoni eqediwe, isivinini sokuthayela, kanye nendlela yokuthatha. Ngaphansi kwezimo ezijwayelekile zokukhiqiza, ukukhishwa kwanyanga zonke kungafinyelela cishe amathani angama-60-80.

Thumela Uphenyo

Incazelo Yomkhiqizo

Kusukela ku-Copper Wire kuya ku-Finished Busbar Ribbon

I-PV Busbar Ribbon Production Line isebenzisa intambo yethusi njengempahla eluhlaza. Intambo iqale idonswe kububanzi obudingekayo ukuze iginqike, bese ibunjwa ibe iribhoni eliyisicaba ngokugingqika okunembayo kwe-multi-stand. Ngemva kokuginqika, i-copper strip idlula e-annealing eqhubekayo ukuze ilungise izici zayo zomshini, okulandelwa ukwelashwa kwe-flux kanye ne-hot-dip tin coating. Ekugcineni, iribhoni eqediwe ilinyazwa uhlelo lokuthatha oluzenzakalelayo kuma-spools noma amakhoyili e-pancake.

Umshini Wokudweba

Intambo yethusi idonswa ngokufa ibe ububanzi obuyi-2.6-3.0 mm, ilungele ukugoqwa.

4 Roll Stand

Intambo yethusi eyindilinga igoqwa ibe iribhoni eliyisicaba, enobubanzi obulawulwayo nokunemba kogqinsi.

Anealing

I-annealing ye-short-circuit annealing isetshenziswa ngokuvikela igesi engasebenzi kanye nokupholisa amanzi ajikelezayo ukuze kuthuthukiswe izakhiwo zemishini yeribhoni lethusi.

I-Tin Coating

Kusetshenziswa i-hot-dip tin coating. Imimese yomoya ilawula ukujiya kongqimba lukathayela, futhi izifeni zokupholisa zisiza ukuzinzisa ikhwalithi yangaphezulu. Ukujiya kwe-tin ehlangothini olulodwa: 0.01-0.025 mm.

I-Automatic Coil Chang

Imisebenzi ongayikhetha ihlanganisa ukunqamula i-servo, ukushintsha kwe-spool okuzenzakalelayo, ukusika okuzenzakalelayo, nokuthepha ngokuzenzakalelayo.

Ukuthatha Okuqondile

I-Spool winding: kufika ku-30 kg.

Ukugoqa ikhoyili ye-pancake: ngokuzithandela 1-2 kg.

I-R&D kanye Namalungelo Obunikazi

Kusukela ngo-2015, i-GRM iqhubekile nokuthuthukisa imishini yokukhiqiza yeribhoni yokuxhumana ye-PV kanye neribhoni yebhasi. Inkampani ithole amalungelo obunikazi amaningi obuchwepheshe ahlobene nokugoqa okunembayo, ukuhlanganiswa komugqa wokukhiqiza, kanye nezinqubo zokukhiqiza iribhoni le-PV.

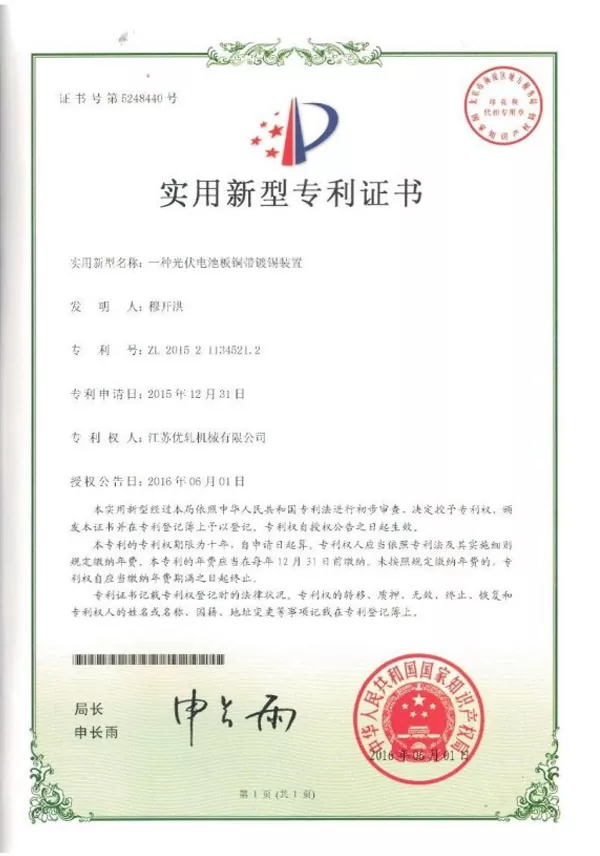

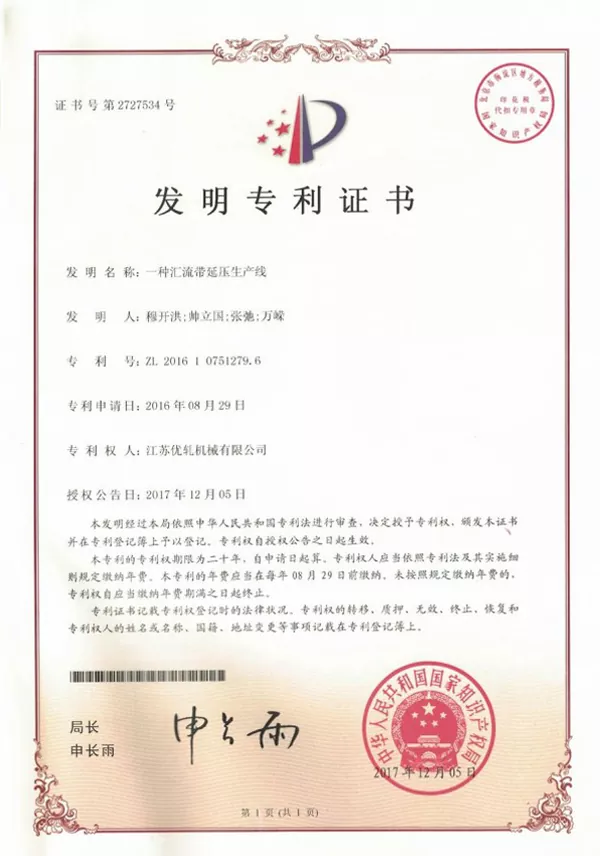

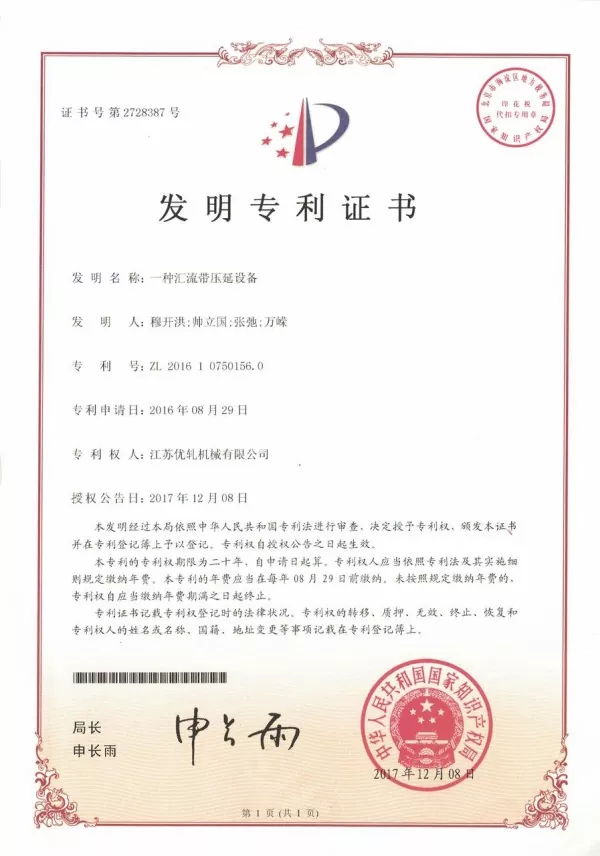

I-GRM Patented Technologies Yezisetshenziswa Zokukhiqiza Iribhoni ye-PV

Izici Eziyinhloko

Ukukhiqizwa okuqhubekayo kusukela kokufakwayo kwentambo yethusi kuya ekuphumeni okuqediwe kweribhoni yebhasi ehlanganiswe ngothayela.
Ukuvumelana kwe-dimensional okuthuthukisiwe, ukufana kwe-coating, nekhwalithi yokumazombe.
Ukuxhumanisa ukucindezeleka nokuthatha okuzenzakalelayo kusiza ukunciphisa ukuphazamiseka kokukhiqiza nokungenelela okwenziwa ngesandla.
Isekela kokubili iribhoni yebhasi ejwayelekile kanye nokukhiqizwa kweribhoni yebhasi ekhanyayo yezidingo zemojula ye-PV ehlukene.
Ihlinzeka abakhiqizi beribhoni be-PV ngesisombululo sokukhiqiza esididiyelwe esigxile ekulawuleni inqubo, ukungaguquguquki komkhiqizo, nokusebenza kahle kokukhiqiza.

imibuzo ejwayelekile ukubuzwa

1.Lithini ibanga likasayizi womkhiqizo oqediwe?

Ububanzi obuqediwe: 3-8 mm.

Ubukhulu obuqediwe: 0.2-0.4 mm.

2.Ayini ukubekezelelana kanye nobubanzi bezakhiwo zemishini?

Ukubekezelela ububanzi: ±0.085 mm.

Ukubekezelela ukujiya: ±0.01 mm.

Amandla okuqina: ≥260 MPa.

Amandla okukhiqiza: 90-130 MPa.

3.Iyiphi indlela yokumboza ithini esetshenziswayo?

Ulayini usebenzisa i-hot-dip tin coating, enembobo egcwele ezungeze iribhoni, okuhlanganisa namaphethelo womabili aseceleni.

4.Bulinganiswa kanjani ububanzi nobukhulu bomkhiqizo?

Isitendi sesine somshini wokugaywa onezitendi ezine sifakwe izinhlelo ezimbili zokulinganisa i-laser, eyodwa ngeyokulinganisa ububanzi neyokukala ukushuba. Idatha yokulinganisa ingaboniswa ku-HMI.

5.Yiziphi izinto ezingase zenziwe?

I-PV Busbar Ribbon Production Line yakhelwe kakhulu i-TU1 intambo yethusi engenawo umoya-mpilo. Ukucushwa okwenziwe ngokwezifiso kunganikezwa ngokuya ngama-alloys ethusi ahlukene, ubukhulu bomkhiqizo, kanye nezidingo ezikhethekile zeribhoni.
