              Solar PV Round Wire Machine
              • Solar PV Round Wire MachineSolar PV Round Wire Machine
              • Solar PV Round Wire MachineSolar PV Round Wire Machine
              • Solar PV Round Wire MachineSolar PV Round Wire Machine

              Solar PV Round Wire Machine

              I-GRM Rolling Mill ingumphakeli ohamba phambili emhlabeni wonke wemishini yokukhiqiza enembayo (efana neSolar PV Round Wire Machine) kanye nezixazululo eziphelele zomugqa wamaribhoni e-photovoltaic, ikakhulukazi amaribhoni e-MBB. Sisebenza ngokukhethekile ekuhlinzekeni ubuchwepheshe obuphelele bokukhiqiza amaribhoni axhumanisayo—izinto eziyinhloko zokuqhuba amamojula e-PV—okuhlanganisa ukudweba okunembayo, isikhathi, nokujikajika okuhlakaniphile. Imishini yethu iklanyelwe ukuzuza ukuzinza nokungaguquguquki kweribhoni yejiyomethri, ukufana kwe-coating, kanye nezakhiwo zemishini, ezisebenza njengesisekelo sokuthuthukisa ukusebenza kahle kwamaseli kanye nokuthembeka kwemojula yesikhathi eside.

              Thumela Uphenyo

              Incazelo Yomkhiqizo
              1/3

              I-GRM Photovoltic Ribbon Production Line

              Imboni ye-GRM igxile ku-R&D kanye nokukhiqiza okuphelele imigqa yokukhiqiza yamaribhoni e-photovoltaic aphezulu, ikakhulukazi amaribhoni e-MBB (Multi-Busbar). Umshini wethu we-Solar PV Round Wire uyikho yakhelwe ukuhlangabezana nezidingo ezikhulayo zemboni zokunemba nokusebenza, ukuqinisekisa ukulawula ukunemba kwenqubo egcwele kusuka impahla eluhlaza emkhiqizweni oqediwe. Lokhu kwenza amakhasimende ethu akwazi khiqiza amaribhoni ekhwalithi ephezulu ane-conductivity ehlukile, ukuthembeka kwe-soldering, kanye nokumelana nesimo sezulu isikhathi eside.

              Ukucaciswa Okubalulekile

              • Ibanga Lokucubungula:Iphatha izintambo ezingenayo ezifika ku-1.6 mm ubukhulu obukhulu, ikhiqiza iribhoni eqediwe ebangeni elinembile lika-015mm ukuya ku-0.4 mm.
              • Umgomo Oyinhloko: Ukuqinisekisa ukuthi iribhoni eqediwe idlula izindinganiso zemboni ngokungaguquguquki kokusebenza, ukujiya koqweqwe/ukufana, ukuzinza kwamandla esivuno, nokugxila/ukuhambisana komumo.
              • Ukuqinisekiswa Kwekhwalithi:Izinhlelo zokuhlola ezithuthukile eziku-inthanethi ziqinisekisa ukuthobela okungu-100% namazinga aqinile ekhwalithi yemboni ye-PV.
              1/3

              Izinzuzo Eziyinhloko Zezobuchwepheshe

              • Isebenzisa umthetho we-PLD(Programmable Logic Drive) ukuze uthole isivinini somugqa ohlanganisiwe, ovumela ukushintshwa kwesivinini okushelelayo nokuvumelanisa okuphumelelayo.
              • Ukuthatha okulawulwa yi-Servo-motor kuqinisekisa ukushuba njalo nokugoqa ikhoyili ehlanzekile.

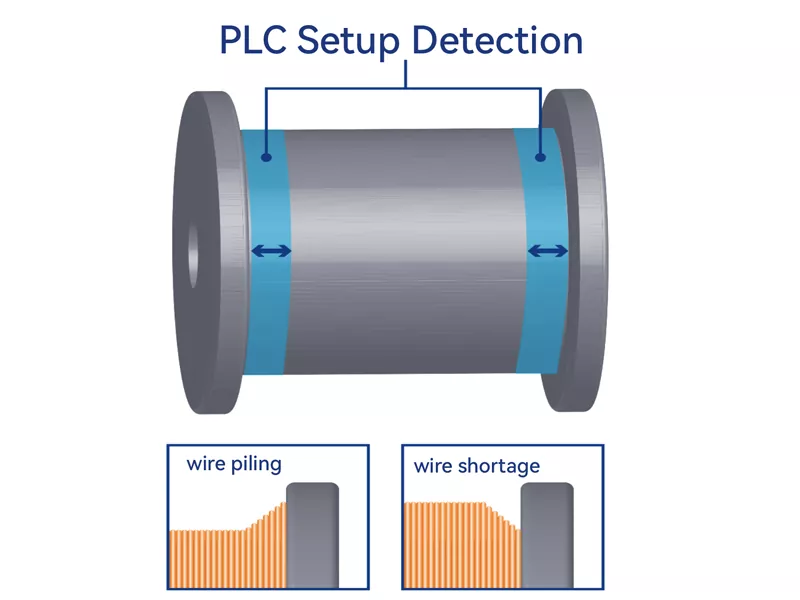

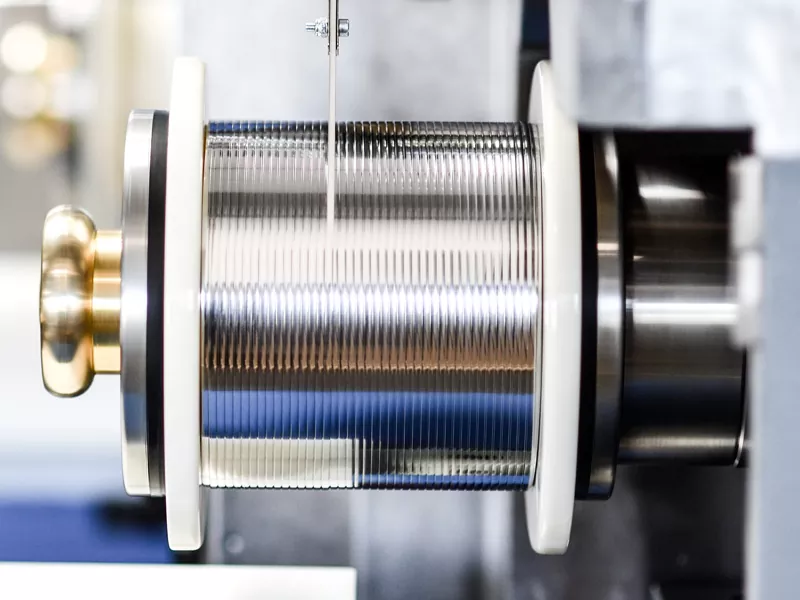

              • I-Proprietary Winding Technology: "I-Wire Moving" (yezintambo eziyindilinga) kanye ne-"Bobbin Moving" (yeribhoni eyisicaba)

              Iqinisekisa ngokuyisisekelo ukujikajika okuqinile nokufana okufanayo, ukususa ngokuphelele "ukugqagqana" kanye "nokuvala igebe", okwandisa kakhulu umthamo we-spool kanye nokuzinza kwenkokhelo.

              Izinketho Zokucushwa Eziguquguqukayo

              I-GRM inikezela ngamamodeli we-Fully Automatic kanye ne-Semi-Automatic ukuze afanele isabelomali esihlukile sokutshala izimali kanye nezidingo ezizenzakalelayo mayelana nomshini we-Solar PV Round Wire.


              Idatha Yezobuchwepheshe

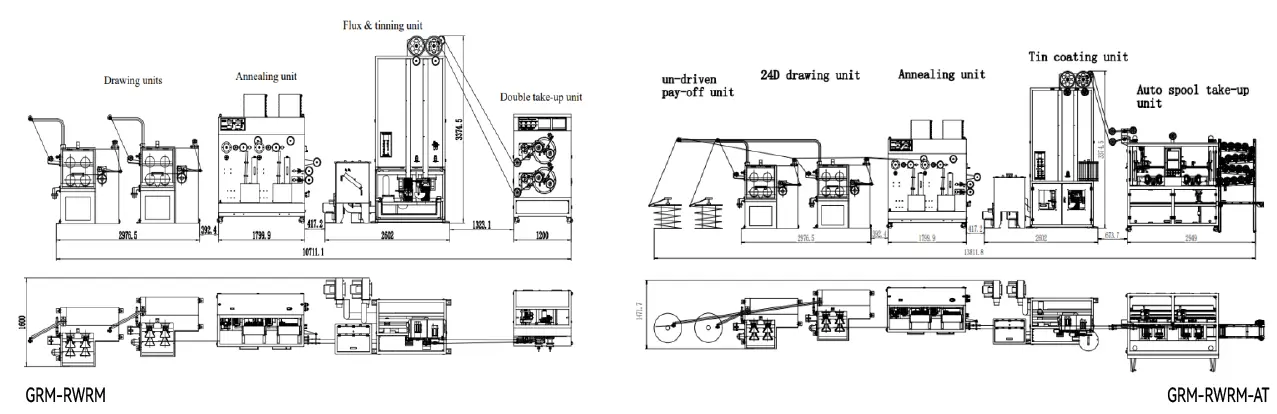

              Imodeli Usayizi we-Intel Aqede usayizi Isivinini Isivuno Amandla
              I-GRM-RWRM Φ1-Φ0.6mm emva kokumboza: φ 0.15-0.4mm 400m/min 60-75MPa
              GRM-RWRM-AT Φ1-Φ0.6mm emva kokumboza: Φ 0.15-0.4mm 600m/min 60-75MPa

              Imodeli ye-GRM-RWRM-AT ihlanganisa I-Automatic Bobbin Loading System, enciphisa kakhulu ukungenelela okwenziwa ngesandla; ifakwe Amasistimu Okuphakelayo Kathayela Okuzenzakalelayo kanye Nezinhlelo Zesikhathi ukuze kuqinisekiswe ukukhiqizwa okuqhubekayo kanye nokuvumelana kwenqubo.

              Ukuqashelwa Kwemakethe

              Imishini yethu isizuze ukwethenjwa nokwamukelwa abakhiqizi be-PV abahamba phambili emhlabeni wonke. Amakhasimende angokhiye abambisene ahlanganisa i-JA Solar, i-Telison, i-Adity Birla Group, nezinye izilinganiso zemboni, zisekela ngokuthembekile ukukhiqizwa kwazo okukhulu kwamamojula amaseli asebenza kahle kakhulu.

              I-GRM izibophezele ekubeni uzakwethu onokwethenjelwa ekuthuthukiseni ikhwalithi yeribhoni, ekwehliseni izindleko zizonke, kanye nokuqinisa ukuncintisana kwakho okuyisisekelo kwemakethe ngobuchwepheshe bemishini ethuthukisiwe kanye nokuqonda okujulile kwenqubo. Siyakwamukela ukuthi uxhumane nathi futhi uthenge umshini wethu wekhwalithi Solar PV Round Wire Machine!
