I-CTC Continuous Conductor Line

I-GRM Rolling Mill CTC Continuous Transposed Conductor Line iqhosha ngokusebenza okuzinzile kanye nokunemba okuphezulu, isekela ukulungiswa kwesivinini kanye nokulungiselelwa okwenziwe ngendlela oyifisayo, futhi isebenza kabanzi ekukhiqizeni izintambo ezinembayo ku-transformer, imoto yamandla entsha, into yasendlini, yezokwelapha, nezinkundla zikagesi zasemkhathini. Xhumana nathi!

Thumela Uphenyo

Incazelo Yomkhiqizo

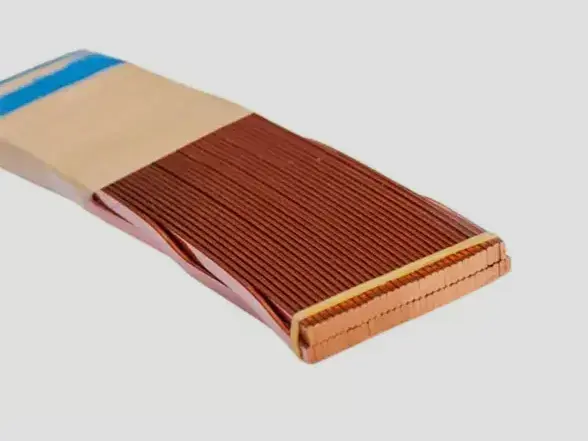

I-CRM Rolling Mill's CTC Continuous Transposed Conductor Line idlulisa ngokuqhubekayo kusukela emicu emi-5 kuye kwengama-47 ngokumboza izintambo zethusi eziyisicaba ezingasebenzi, ezingenawo umoya-mpilo, ngevarnish evikelayo futhi zizisonge ngephepha elivikelayo nezinye izinto zokugqumisa. Amakhondakta abe esehlanganiswa abe yinqwaba yekhondatha ehlangene futhi ehlelwe kahle engunxande.

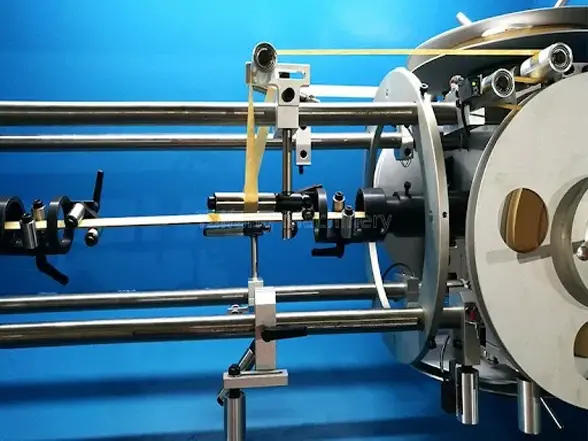

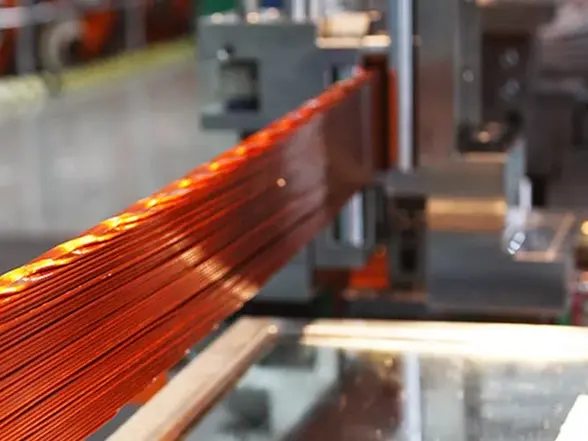

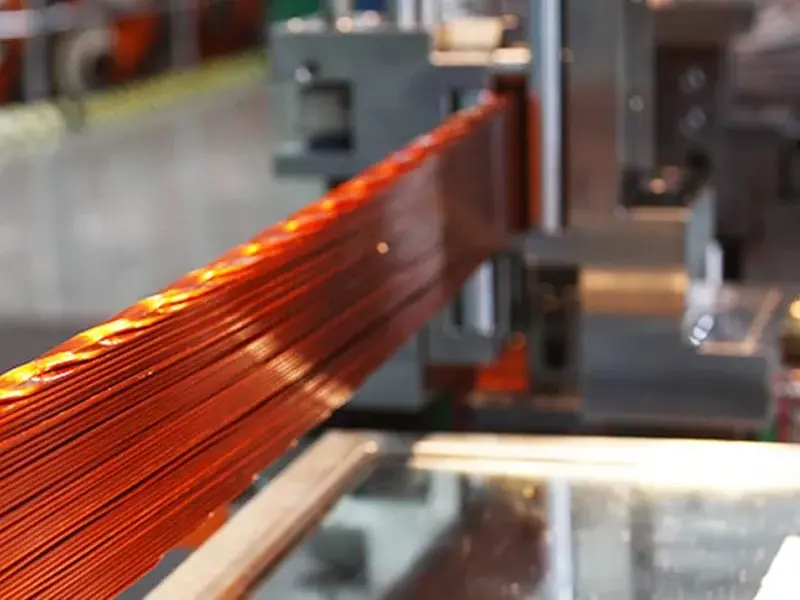

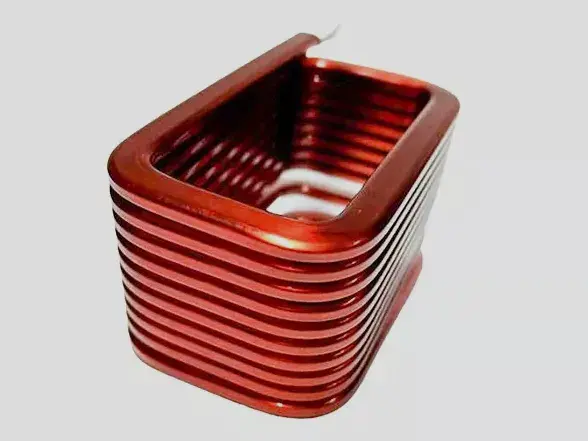

CTC Continuously Transposed Conductor Line

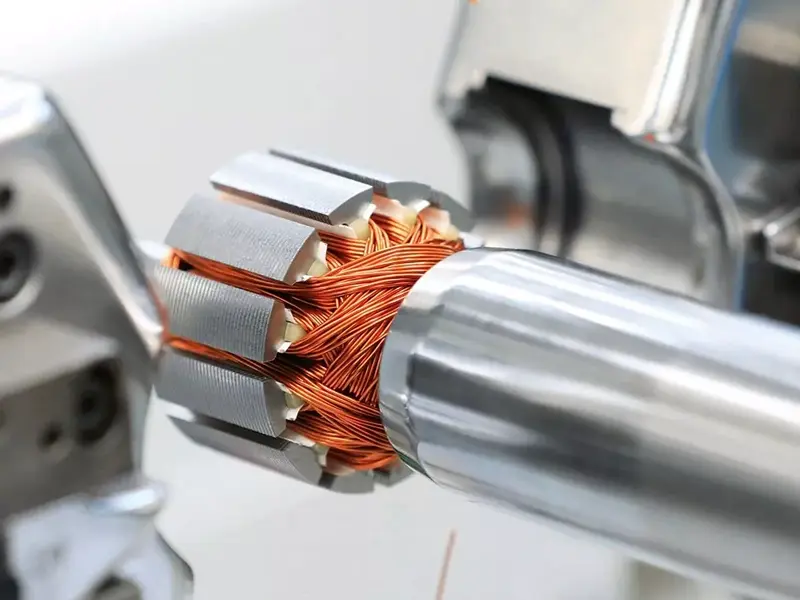

CTC Continuously Transposed Conductor Line for EV components

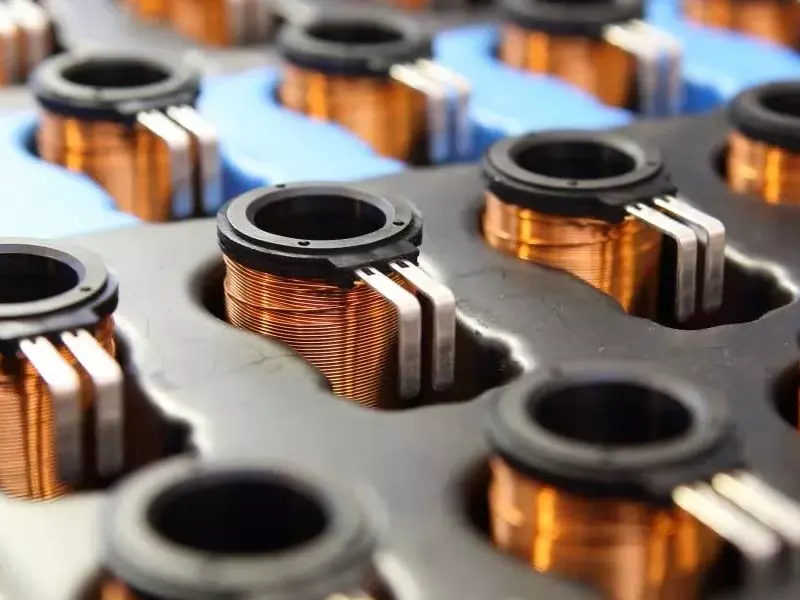

CTC Continuously Transposed Conductor Line for Household appliances

CTC Continuously Transposed Conductor Line for Medical devices

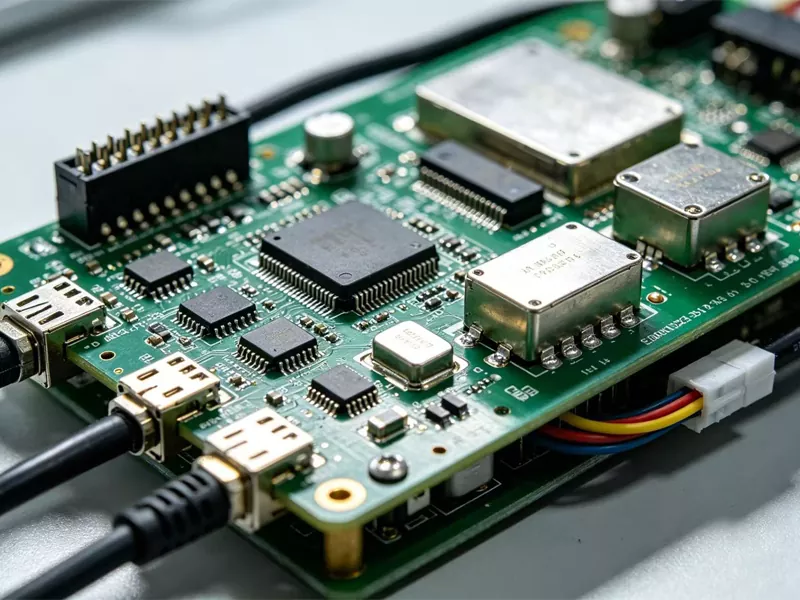

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Izimboni Zokusebenza

1. i-transformer windings

2. Izingxenye ze-EV

3. Izinto zasendlini

4. Imishini yezokwelapha

5. Imihlangano kagesi emkhathini

Ukugeleza Kwenqubo Eyinhloko

Inkokhelo→Isiqondiso Esihambisanayo→Ukuguqulwa Okunembayo→Ukugoqa I-Insulation (Inketho)→Ukuthatha

Imininingwane Yezobuchwepheshe

I-Single Conductor Parameters	Okuncane	Ubukhulu
Ubukhulu	1.15mm	3.15mm
Ububanzi	3.0mm	12.5mm
I-Width/Thickness Ratio	3:1	8:1
Ukuqina koqweqwe lwawo	0.08mm	0.18mm

I-CTC Conductor Parameters	Okuncane	Ubukhulu
Isivinini Sokukhiqiza	1 m/min	15 m/min
Inombolo Yabaqhubi	5 (okungavamile)	47 (okungavamile)
Ubude (mm)	5.0	80.0
Ububanzi (mm)	6.0	26.0
Iphimbo Lokushintsha (mm)	20	280
I-Height/Width Ratio	1:3	8:1
I-Transposition Push Speed	i-colspan=“2”	150 izikhathi/min

Izici Eziyinhloko

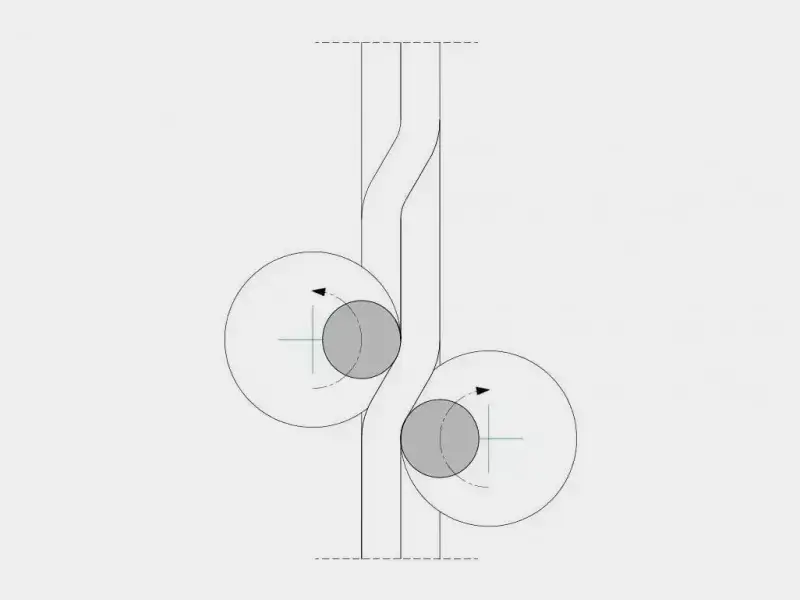

1. Isistimu yokuguqulwa enembayo yokuqondisa kokhondatha okuzinzile

2. I-CTC Continuous Transposed Conductor Line ingahambisana nezikhondatha zethusi ezinoqweqwe lwazo.

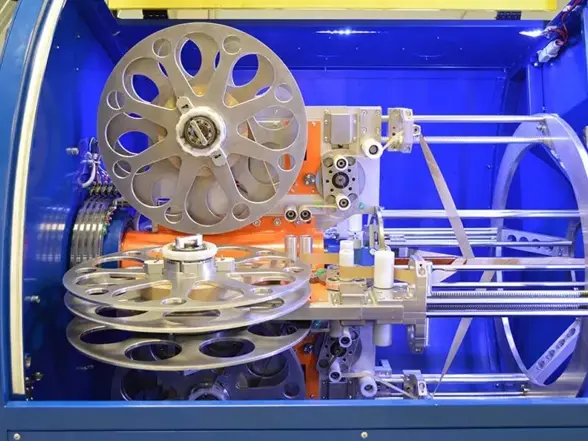

3. Iyunithi yokugoqa yokugoqa yephepha

4. I-Servo-controlled tension and winding system

Izinzuzo Zobuchwepheshe

Isikhungo sokukhiqiza se-GRM sihlome nge-online coating kanye nezinhlelo zokuhlola ezikwazi ukucubungula izintambo eziyisipesheli zikazibuthe ezinezingqimba eziningi zoqweqwe lwawo. Ukucutshungulwa okusha kokumboza ngaphakathi kwendawo efanayo kuthuthukisa ukusebenza kokumelana nogesi futhi kuthuthukisa ikhwalithi yendawo yekhondatha. Ukuqapha ku-inthanethi okuqhubekayo kuqinisekisa ukuqhubeka kwe-dimensional kanye nokuzinza kokusebenza kwesikhathi eside.

FAQ

1. Yini umqhubi we-CTC?

I-CTC (I-Continuously Transposed Conductor) iyinqwaba ye-conductor engunxande eyenziwe ngokuqhubekayo ngokushintsha amakhondatha ayisicaba afakwe ngaphakathi ukuze kuncishiswe ukulahlekelwa kwamanje kwe-eddy kuma-transformer.

2. Yiziphi izinto ezingenziwa inqubo yomugqa?

Ulayini uklanyelwe ikakhulukazi amakhondatha ethusi ayisicaba ahlanganiswe ngoqweqwe lwawo komoya-mpilo kanye nezinto zocingo zikakazibuthe ezihlobene.

3. Ingabe umshini ungenziwa ngokwezifiso?

Yebo. I-GRM ihlinzeka ngokucushwa okwenziwe ngokwezifiso kuye ngobukhulu bekhondatha, isivinini sokukhiqiza, ukwakheka kokufakelwa, kanye nesakhiwo sesitshalo.

Ulungele Ukuthuthukisa Ukukhiqizwa Kwakho Kwezintambo Zezibuthe?

Xhumana ne-GRM ukuze uthole izixazululo zokukhiqiza ezenziwe ngezifiso ze-CTC ezenzelwe ukunemba ukucutshungulwa kwezintambo eziyisicaba, izinhlelo zokusebenza ze-transformer, nokukhiqizwa kwezintambo zikazibuthe ezithuthukisiwe.
