Umdwebo Odidiyelwe kanye Nolayini Ogingqwayo we-Precision Copper Flat Wire

I-GRM's Integrated Drawing and Rolling Line ye-Precision Copper Flat Wire iyisixazululo esenziwe ngokwezifiso sethusi esiyisicaba sokukhiqiza intambo ehlanganisa umdwebo wezintambo, ukugoqa okunembayo, ukulinganisa ku-inthanethi, kanye nokuthathwa okuzenzakalelayo ngenqubo eyodwa eqhubekayo. Idizayinelwe amakhondaktha we-transformer, ukukhiqizwa kukakhondatha we-CTC, izintambo ezinonxande ezinoqweqwe oluqinile, kanye nokukhiqizwa kwe-EV motor flat wire, ulayini ufinyelela isivinini esingafika ku-400 m/min. Lolu hlelo oludidiyelwe luthuthukisa ukusebenza kahle futhi lunciphise ukuphatha izinto.

Thumela Uphenyo

Isilinganiso: 5.0

(Isilinganiso sokubala: 1)

Incazelo Yomkhiqizo

Umdwebo odidiyelwe we-GRM nolayini ogingqikayo uhlanganisa umdwebo wezintambo, ukugoqa okunembayo, ukulinganisa ku-inthanethi nokuthatha okuzenzakalelayo kube inqubo eyodwa eqhubekayo yokukhiqiza. Lolu hlelo luklanyelwe ukukhiqiza intambo yethusi enembayo ephezulu esetshenziswa kuntambo kazibuthe, i-transformer conductor, i-CTC conductor kanye ne-EV motor applications.

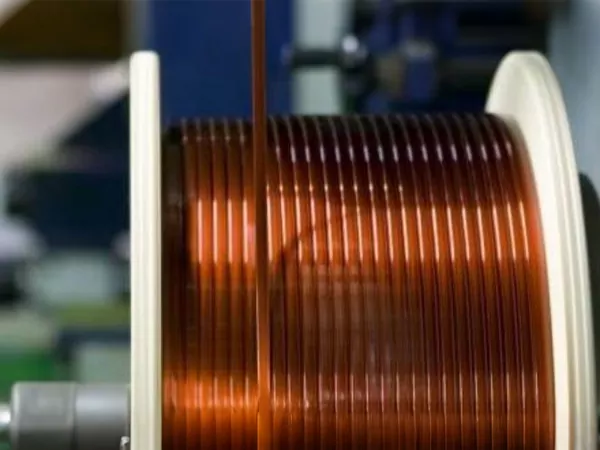

Precision copper flat wire produced on GRM integrated drawing and rolling line

I-GRM edidiyelwe yokukhiqiza izintambo eziyisicaba iklanyelwe ukuqhubekaukucutshungulwa kwentambo yethusi ibe yizikhondatha eziyisicaba ezinembayongokubekezelela okuqinile kwe-dimensional kanye nekhwalithi ephezulu kakhulu.

Ngokuhlanganisa izinqubo zokudweba nokugingqika ohlelweni olulodwa lokukhiqiza, ulayini uthuthukisa kakhulu ukusebenza kahle kokukhiqiza kuyilapho unciphisa ukuphatha mathupha nokugcina ukuvumelana komkhiqizo okuzinzile kuyo yonke imijikelezo emide yokukhiqiza.

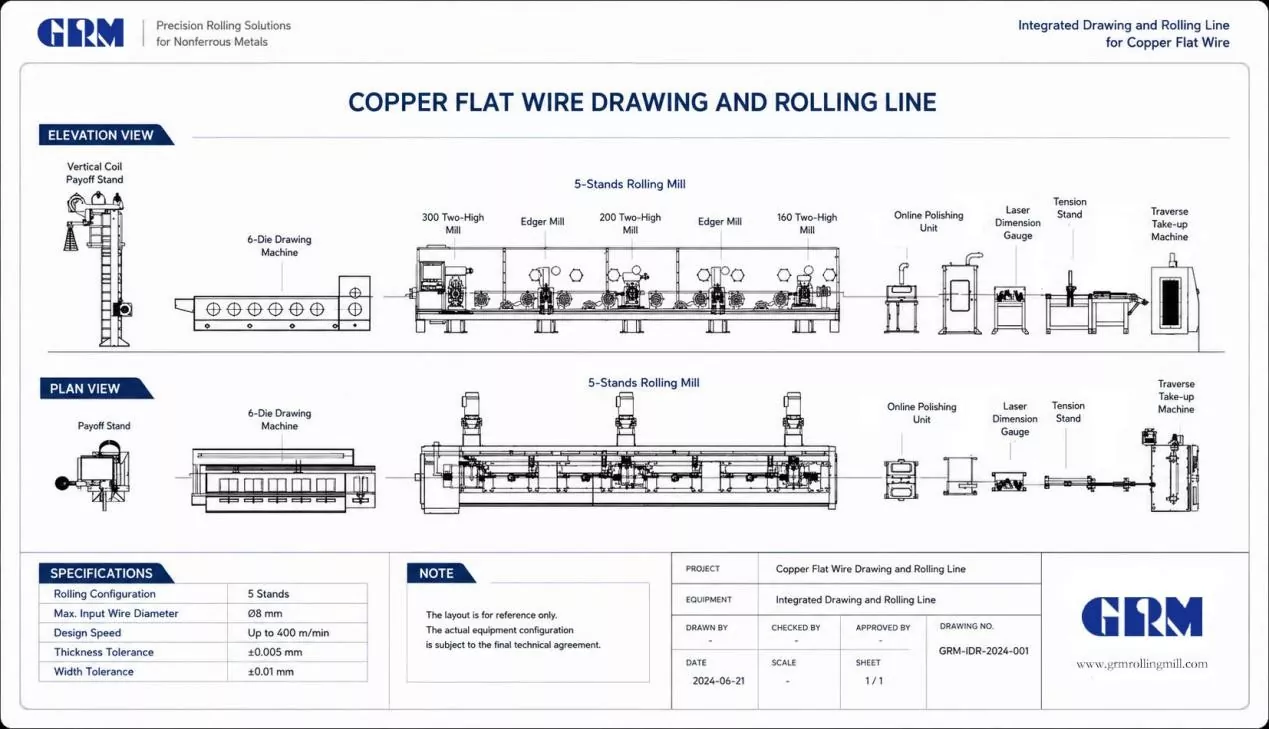

Integrated copper flat wire drawing and rolling line production process

Umklamo oguquguqukayo futhi ophumelelayo

Isitendi Sokukhokha Sekhoyili Emile: 1 isethi

I-DLF6D/500 Umshini Wokudweba Oyisithupha uyafa: 1 isethi

I-Rolling Mill enembayo emibili: 3 amasethi

I-I-Side Rolling Mill: 2 amasethi

Idivayisi Yokupholisha Nokuqoqwa Kwezintuli ku-inthanethi: 1 isethi

Idivayisi Yokukala Ubukhulu Nobubanzi eku-inthanethi: 1 isethi

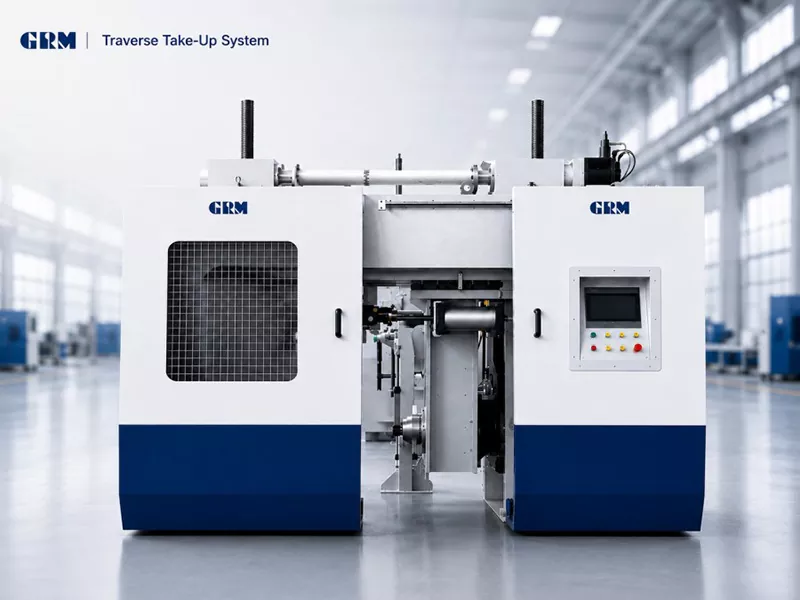

Umshini Wokuthatha I-Transverse: 1 isethi

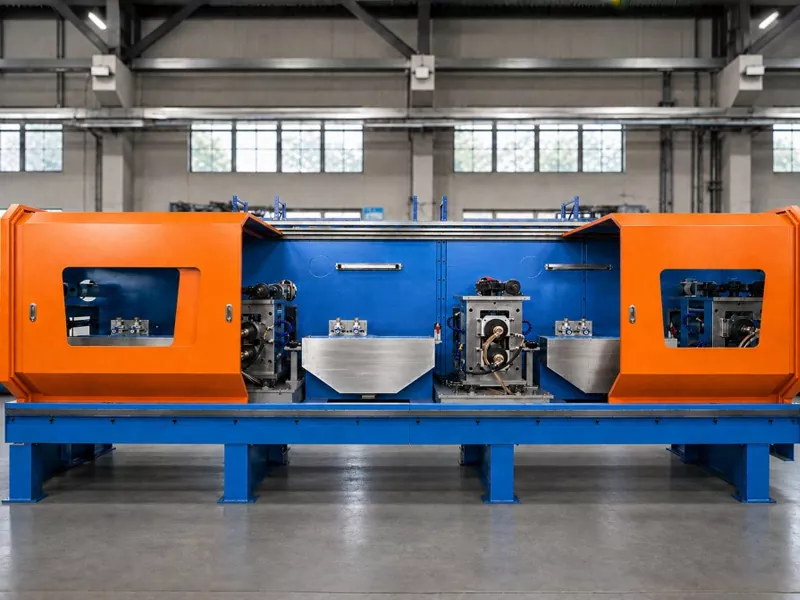

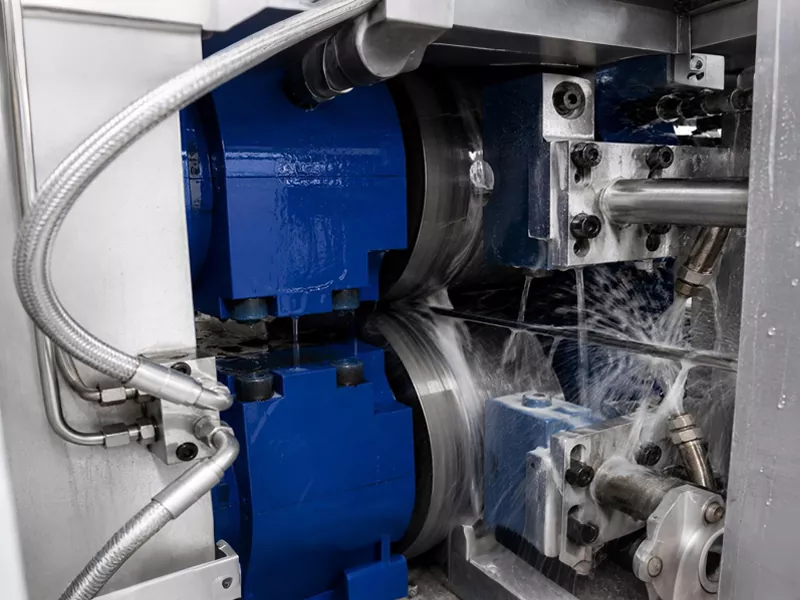

Two-roll precision rolling mill on copper flat wire production line

Side rolling mill for copper flat wire width control

Online thickness and width measuring device for copper flat wire

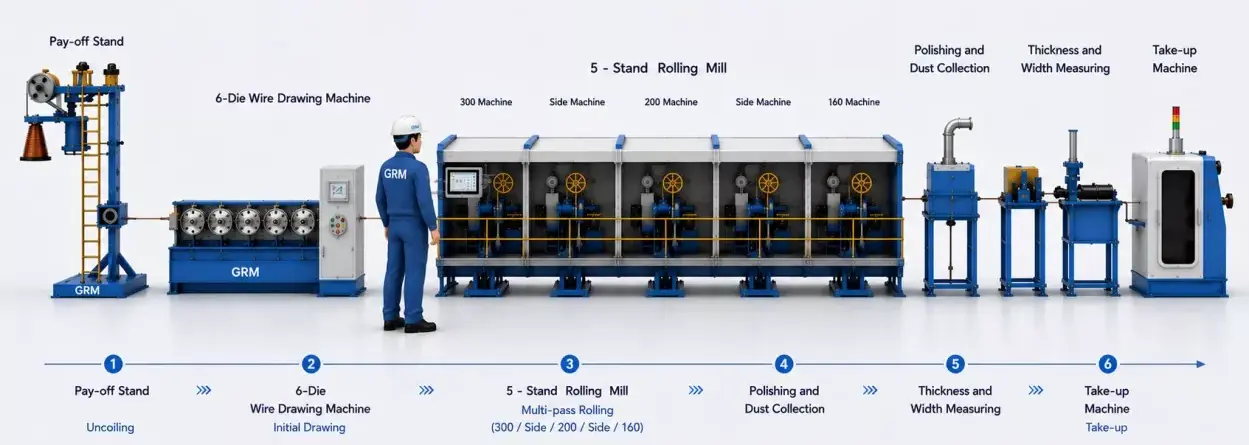

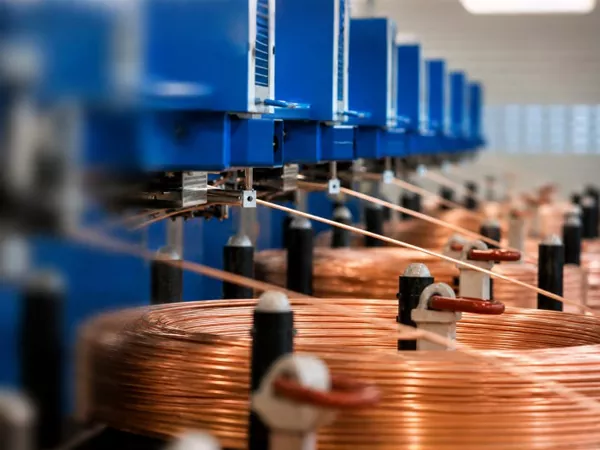

Umugqa ophelele wokukhiqizwa kwe-Copper Wire

I-Integrated Drawing and Rolling Line ye-Precision Copper Flat Wire yakhelwe ukufuna ukunemba okuphezulu kobukhulu ekukhiqizeni ikhondatha kagesi. Ngesivinini esiphezulu esingu-400 m/min, ifaneleka kahle ukukhiqizwa okukhulu okuqhubekayo kocingo oluyisicaba lwethusi.

Uma kuqhathaniswa nezinqubo ezivamile zokugingqa ezimele, ulayini ohlanganisiwe uqeda ukuphathwa kwezinto ezimaphakathi futhi uqinisekisa ukuvumelana okuphakeme okuphakeme kukho konke ukusebenza kokukhiqiza.

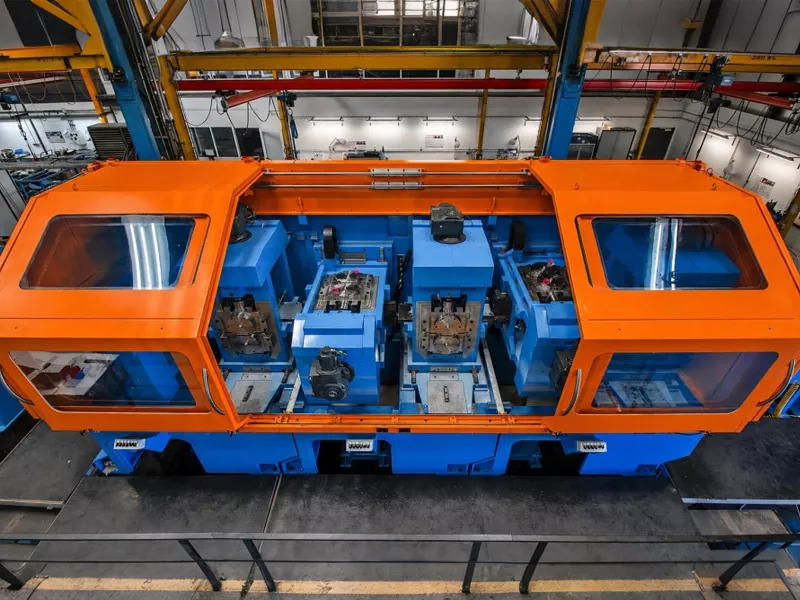

GRM integrated copper flat wire production line with 5-stand rolling mill

* Inqubo Yomugqa Wokukhiqiza Ingenziwa Ngokwezifiso Ngokuhambisana Nobukhulu Bomkhiqizo Wekhasimende

IMICIMBI YOBUCHWEPHESHE

Ukucushwa okungu-5-stands Rolling Mill		GRM
Isigayo sokuqala se-Two-high	Ø mm	300
Okokuqala Edger mil	Ø mm	155
Isigayo sesibili esinezinga eliphezulu	Ø mm	200
Owesibili Edger mil	Ø mm	155
Okwesithathu Izigayo ezimbili eziphakeme	Ø mm	160
Isivinini sokuklama	m/min	400
Ubuningi be-Intel Wire	Ø mm	8
Kuqedwe ukubekezelelana	mm	ukujiya: ± 0.005 ububanzi:±0.01
Ububanzi obujwayelekile be-Flat wire size	mm	Ubukhulu: 2.0-12 ububanzi: 0.5-4.0

Izicelo Ezijwayelekile

Intambo Yezibuthe Engunxande Ene-enameled

I-CTC I-Transposed Conductor

I-I-EV Motor Hairpin Conductor

I-I-EV Motor Flat Wire Production

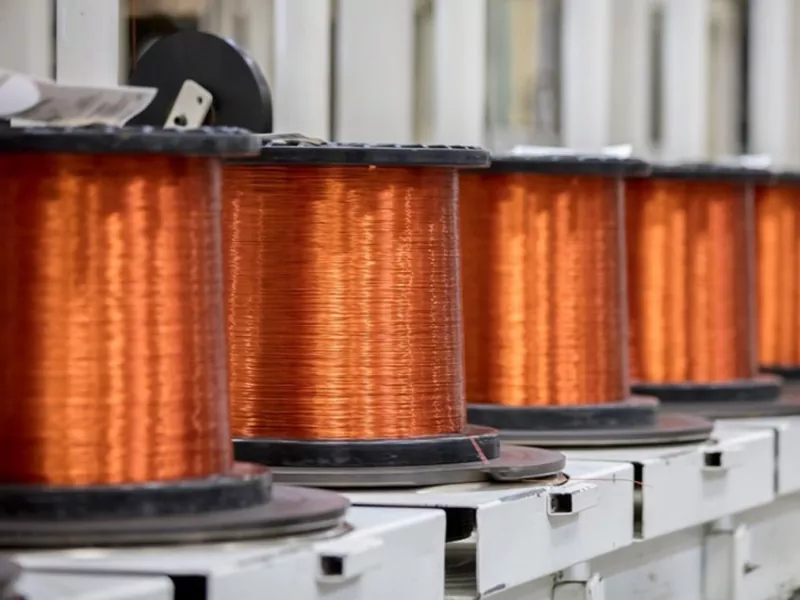

Enameled rectangular magnet wire produced on GRM line

CTC continuously transposed conductor production

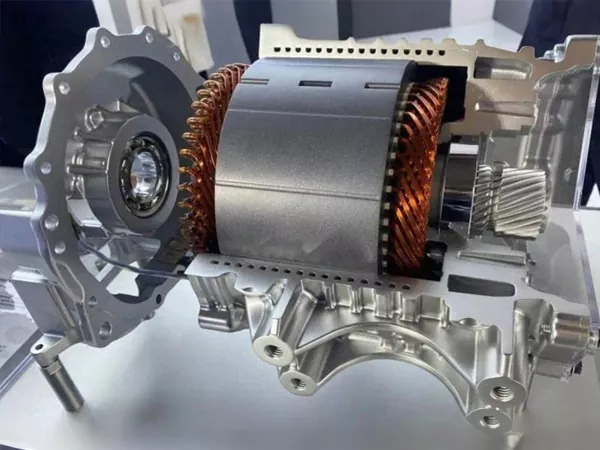

EV motor hairpin conductor flat wire production

FAQ

1. Ingabe lo mugqa wokukhiqiza ungakha i-copper flat wire yezinhlelo zokusebenza ze-transformer?

Yebo, ulayini uklanyelwe ukukhiqiza intambo eyisicaba yethusi enembayo ephezulu yamakhondatha e-transformer, intambo kazibuthe nezinye izinhlelo zokusebenza zikagesi.

2. Ingabe Ulayini Odidiyelwe Wokudweba Nokuginqa we-Precision Copper Flat Wire ungenziwa ngendlela oyifisayo?

Yebo, i-GRM ihlinzeka ngezixazululo zomugqa wokukhiqiza ezenziwe ngokwezifiso ezisuselwa kumpahla yakho yokufaka, ubukhulu bezintambo eziqediwe kanye nezidingo zokukhiqiza.

3. Yikuphi ukunemba okungafinyelelwa yinqubo yokugoqa?

Uhlelo lungafinyelela ukubekezelela ukujiya kufikela ku-±0.005 mm kanye nokubekezelela ububanzi kufikela ku-±0.01 mm ukuze kwenziwe ngokunembayo ukukhiqizwa kocingo oluyisicaba lwekhopha.

4. Kungani ukhetha umdwebo odidiyelwe kanye nomugqa wokugoqa esikhundleni semishini ehlukene?

Umugqa wokukhiqiza i-copper flat wire edidiyelwe uthuthukisa ukusebenza kahle, unciphisa ukuphatha izinto futhi uqinisekisa ukuhambisana komkhiqizo ozinzile.

Ufuna Isixazululo Sokukhiqiza I-Copper Flat Engokwezifiso?

I-GRM ihlinzeka ngezixazululo eziphelele zobunjiniyela ezisuselwe ekucacisweni kwakho kwempahla, ubukhulu bezintambo eziqediwe kanye nezidingo zohlelo lokusebenza ezansi nomfula.

Xhumana nethimba lethu lonjiniyela ukuze uthole ukubonisana nobuchwepheshe kanye nomklamo ongokwezifiso womugqa wokukhiqiza.
