Photovoltaic Welding Strip Rolling Mill

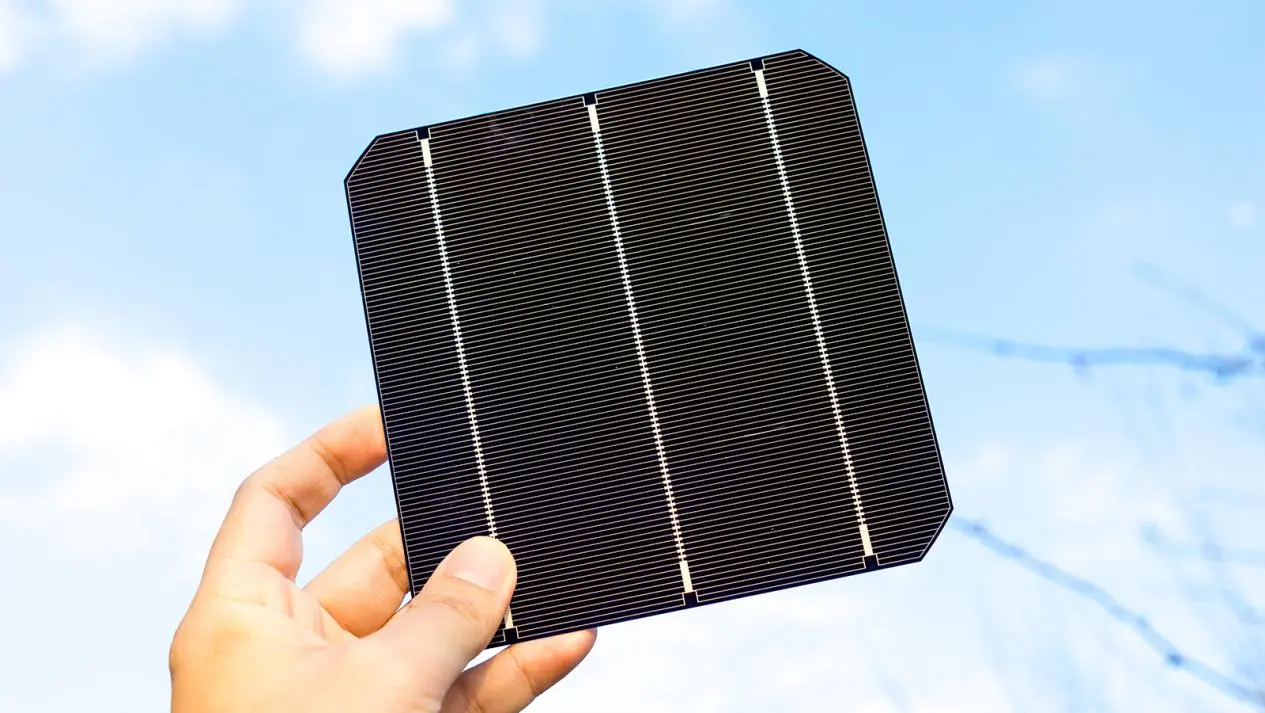

I-China photovoltaic welding strip rolling mill ekhiqizwa imboni ye-GRM Rolling Mill iwumkhiqizo okhethekile wocingo oluyisicaba osetshenziselwa ukuxhuma amaseli elanga kumamojula we-photovoltaic. Yakhiwe nge-copper substrate kanye ne-surface coating. I-Copper substrate ngokuvamile i-high-purity oxygen free yethusi noma i-T2 yethusi ebomvu, enokuqukethwe kwethusi ≥ 99.99% kanye ne-conductivity ≥ 98%. Ine-conductivity enhle namandla athile, angaqinisekisa ukudluliswa kwamanje okuphumelelayo.

Thumela Uphenyo

Incazelo Yomkhiqizo

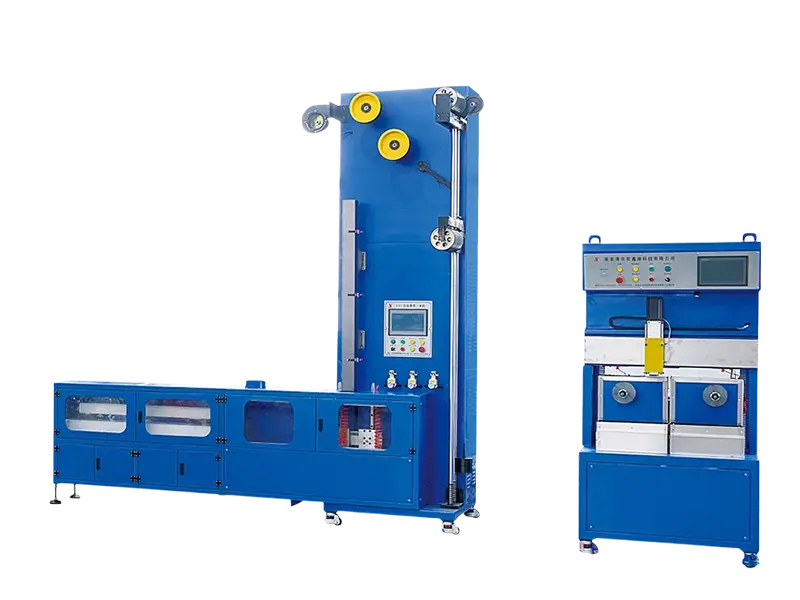

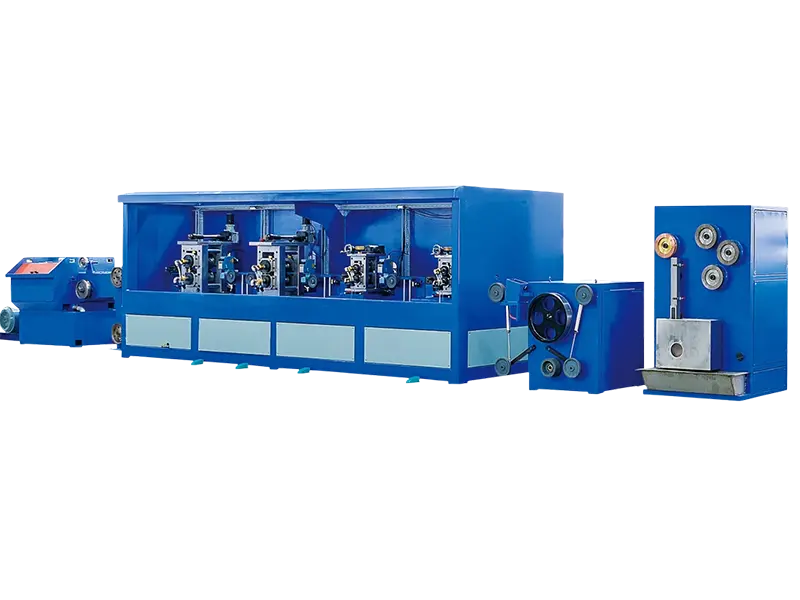

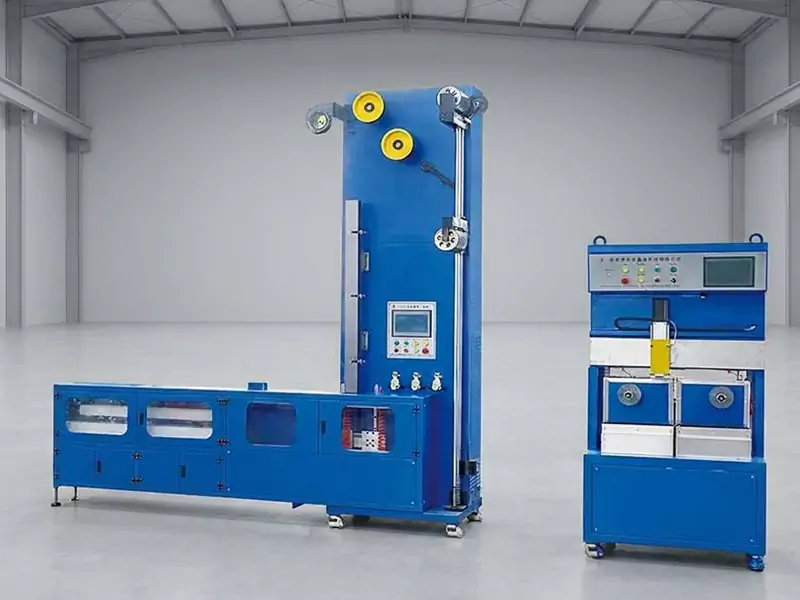

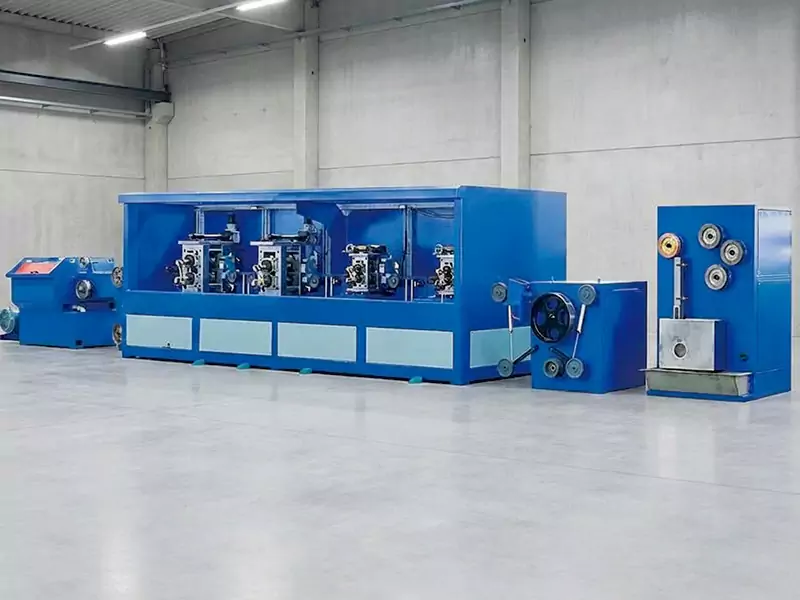

I-Photovoltaic Welding Strip Rolling Mill ehlala isikhathi eside evela kumhlinzeki ohlanganisiwe we-GRM Rolling Mill umshini ohlanganisiwe owenziwe ngokuzimela yinkampani yethu iyimishini ehlakaniphile esezingeni eliphezulu eklanyelwe ngokukhethekile imboni ye-photovoltaic. Ihlanganisa amamojula ayisisekelo asebenzayo afana nesistimu yokubeka izintambo ezizenzakalelayo ngokugcwele, ukugingqika okunembayo kwamaphasi amaningi, ukulawula ukucindezeleka okuhlakaniphile, ukudonsa ngokuqhubekayo kanye namawindi aphindwe kabili.

Njengomshini odidiyelwe webha yebhasi ehamba phambili embonini enesivinini esikhulu, onemba kakhulu, lesi sisetshenziswa singakwazi ukubona inqubo ephelele yokukhiqiza edidiyelwe kusukela ku-¢ izinto zokusetshenziswa zethusi ezingu-3mm ukuya emikhiqizweni eqediwe (ububanzi obungu-3~8mm, ugqinsi 0.2~0.45mm), enesivinini esiphezulu sokusebenza esingu-250m/min, esifanelana ngokuphelele nezidingo eziqinile zokwenziwa kwe-voltaic ephezulu, ukuqina okuphezulu nokunemba okuphezulu.

Ukugeleza kwenqubo evamile

1. Inqubo yokugingqika yocingo oluyisicaba (isebenza emshinini odidiyelwe weribhoni we-photovoltaic welding iribhoni-convex)

Intambo yokukhokha - umdwebo wezintambo wemodi eminingi - ukunemba kwekhalenda - ukutholwa nokulawula ku-inthanethi - umdwebo wemodi eyodwa - Ukuhlubula kwe-CNC - ukuthayela okunesivinini esikhulu - ukufakwa kwe-anneal okuqhubekayo (ukuvikelwa kwe-nitrogen) - ukudonsa okungapheli

Imingcele Yezobuchwepheshe

Imikhiqizo ye-PV Ribbon	Ipharamitha	Imboni Okujwayelekile	Enye Inkampani	GRM
I-Standard Interconnect PV Iribhoni	Ukuqina kwe-coating	±5μm	25±5μm	25±3μm
	Kuqedwe ukushuba komkhiqizo	20.01mm	20.015mm	20.01mm
	Iqedile ububanzi bomkhiqizo	±0.05mm	±0.05mm	±0.05mm
	Amandla aqinile	≥110Mpa	≥150Mpa	≥170Mpa
	Ukwelula	≥15%	≥25%	≥25%
	Amandla esivuno	≤70Mpa	≤70Mpa	62.68Mpa
	Ukugoba kwesikela	≤5mm/m	≤4mm/m	≤4mm/m
	Ukungazweli	0.30Ω* mm/m 0.30Ω*	0.02-0.023Ωmm/m 0.02-0.023Ω	0.0230 Ωmm/m 0.0230Ω
	Ukumelana nokuguga	-	-	DH2000

Izinzuzo zobuchwepheshe

Ukunemba okuphezulu: ± 0.01mm ukubekezelela ukushuba, ukuzivumelanisa nezindinganiso eziqinile zemicu yokushisela ye-photovoltaic

Ukusebenza kahle okuphezulu: 250m/min ukuginqika ngesivinini esiphezulu, ikhwalithi ephezulu ye-Photovoltaic Welding Strip Rolling Mill enikeziwe

I-Multi-material adaptation: iyahambisana nethusi, i-aluminium alloy, njll., ukuqina okuqinile

Ubulukhuni bobuso Ra≤0.2μm (yehlisa ubungozi bokuqhekeka kwebhethri)

Izinhlelo zokusebenza ezijwayelekile:

• Inkambu ye-Photovoltaic: ukukhiqizwa okukhulu kwamaribhoni we-photovoltaic welding namabhasi ukuze kusize izingxenye ziqhube ugesi ngokuphumelelayo.

• Ukucutshungulwa ngokwezifiso kwamabhasi amise okukhethekile (isigaba esiphambanayo esingunxantathu/trapezoidal)

• Imboni ye-elekthronikhi: ukunemba okuphezulu kwezintambo eziyisicaba, ezifanele ama-transformer, ama-inductors nezinye izingxenye

Idizayini eyenziwe ngokwezifiso kanye nesevisi yangemuva kokuthengisa

• Isevisi eyenziwe ngokwezifiso: amapharamitha afana nenani lokudlula, izinto zokubumba, kanye nesivinini sokudweba kungalungiswa ngokuya ngezidingo ezithile zamakhasimende.

• Ukuthuthukiswa kwemishini: ukusekela ukwengezwa kwamamojula okuphasa esigabeni sakamuva ukuze kuhlangatshezwane nezidingo zokunwetshwa komthamo noma ukuthuthukiswa kwenqubo.

• Izindleko zokunakekela: Uma kudlula amaphasi amaningi, ziba phezulu izindleko zokukhunta nokunakekela, kodwa ukusebenza kahle kokucubungula okukodwa kuba ngcono kakhulu. Kunconywa ukwenza ukukhetha okunengqondo ngokusekelwe esikalini sokukhiqiza.

Siyakwamukela ukuthi uxhumane nathi futhi wazi ulwazi olwengeziwe mayelana Ne-Photovoltaic Welding Strip Rolling Mill!
